Solar Powered Workshop

Started by kibi, April 28, 2013, 02:36:46 PM

Previous topic - Next topic

kibi

Hello everyone.

A few months ago I posted about my off grid workshop. The batteries turned out to be a failure, so I had to start from scratch. I have saved up some money and bought some more components. So here we go for the second take.

A shopping list had to be devised. One important component is the charge controller. I'd heard good things about Outback products, but then discovered there was a better alternative. Midnite Solar make a Classic charge controller which is a lot more powerful and has pretty much all the features you'd want built in. Cool, I then spent many man hours searching for a better charge controller than the Classic, but failed.
The charge controller needs to be well built to ensure reliability and it needs to be future proof. The Classic does this. I'll max it out at 1KW on my 12V system, but with higher voltage battery banks in the future I'll get close to 5KW out of it. What more do I need from a charge controller?
I am on a 12V system because I have a 12V Victron inverter that served it's previous life in an ambulance. I also have several other 12V loads, so 12V works for me at the moment.

So, lets get started with the install.

First in line is a combiner box with surge protection. I went for a Dehn PV designated SPD with replaceable modules and remote status contacts.
The fuse holders are 1KV rated with 1KV rated fuses at 15A. The 1KV fuses are expensive. They cost as much as fuses in a good multimeter, which should also be 1KV fuses, but I deem them necessary.

The Dehn SPD.







Fuses



I have found an inexpensive IP65 rated DIN rail box made by ABB to mount all of the components of the combiner into.





Now, it's time to connect everything up.
I had some spare cable lying around. It's the type that a rude boy might use to cobble his sound system together with in his car. It's over rated, but it'll work well and it's free.









I wasn't prepared to buy more cable for the run from the combiner to the breaker box when I already had plenty of 25mm² earth cable, so I marked the ends and used that instead.



Now we have build a DC disconnect box. Again, ABB came through with a good sized box. It's IP65 rating is not necessary as it will be inside, but it's perfect for the job.
Midnite make a really nice DC disconnect box, but it does not have enough DIN ways on a single side to meet my requirements.
This box lives inside and contains some staunch DC breakers. You must NEVER use AC rated breakers on DC systems. AC breakers do not have the arc extinguishing abilities that DC breakers do. AC rated breakers from your local Toolstation are remarkably cheaper, but they will make a fire, when opened, quicker that you can light your BBQ.
I have a 250A breaker for the inverter, a 100A breaker on the output of the Classic and a 63A breaker to the PV input of the Classic. All of these breaker are disconnecting breakers which makes it convenient for me if I need to switch certain circuits off manually.
The disconnect box also houses a 60A DC breaker which is the main breaker for all of my DC loads. Downstream of this breaker are six 600V fuses for each of the DC circuits which include home-brew LED lighting, computer, and security systems. There is also a circuit for the Victron BMV-600 battery monitor and an Arduido MEGA which grabs data out of the BMV-600 and reads some DS18B20 temperature sensors.



Arduino with ethernet board for posting to Cosm and a top PCB for connections.



I don't have a high capacity crimping tool for the 70mm² cables, so I cut a pocket out of a piece of aluminium stock on the mill. The pocket holds the connector snugly. I then proceeded to beat all seven shades out of the top of the connector with a hammer and nail punch. That connector is not coming off.



Things are starting to come together. Power cabling is in as well as the data cabling.





All of the breakers are labelled. All of the data connections are presented on the side via panel mounted Neutrik connectors and labelled accordingly.



Now that the DC disconnect box is ready, we need to install it and the other bits of equipment.
The inverter is mounted above the DC disconnect box. The DC disconnect box now assumes it's vertical position which is the position that the big DC breakers need to be mounted in, to avoid fires.

DC disconnect box mounted and the PV inlet cables connected.



Inverter DC inlet cables connected.



I have modified the bottom tray of the inverter to accommodate Neutrik Powercon mains in and out connectors to aid in easier removal of the cabling if necessary. I have also included an RJ45 connector in order to present the RS485 in a neater fashion.



Next up is the Classic charge controller. It's actually made in America, so it's made of metal and the PCB's are conformally coated, you don't see that very often these days!

The Classic is mounted and all connections made into it.



Everything is mounted, closed up and ready for testing.



Now, I did try an experiment a few months ago with some old UPS batteries that I found in a bin. All 96 5Ah batteries were wired up in parallel to make a nice big 12V pack. Managing 96 12V 5Ah batteries in parallel proved to be a bit of a nightmare, so the "Time Bomb" had to go. It's not all bad, I have a use for these packs. Stay tuned for details later on.



The original battery bank has now been replaced with four Lucas 355Ah 6V batteries in a 2S, 2P configuration. Two parallel banks is a lot easier on the heart.
This bank now gives me twice the capacity of the old one.





After the big switch-on, everyone is happy. Power is flowing, data is flowing.



The inverter is currently keeping an eye on the batteries until I get the PV's installed. I don't have time to do it right now, but I'll report on further progress.

Here are four Renesola 250W poly panels awaiting installation.


kibi

#1
Just a quick update.

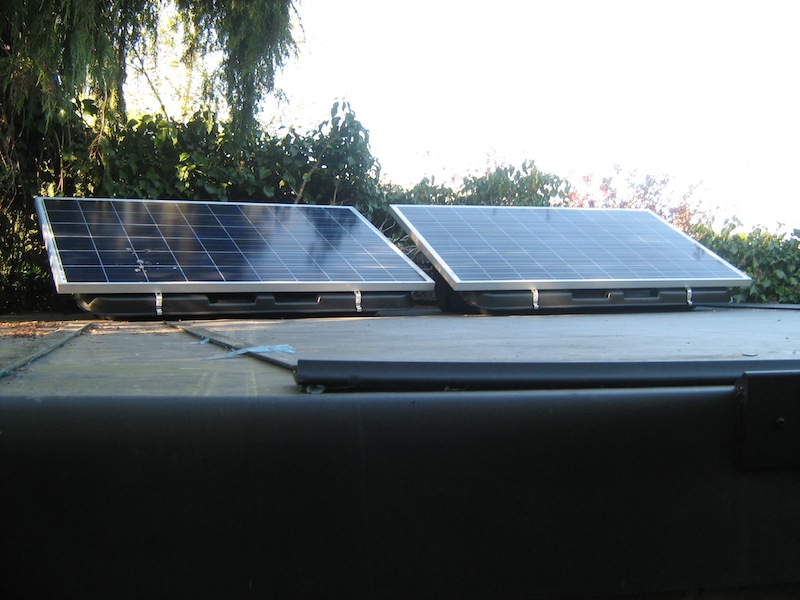

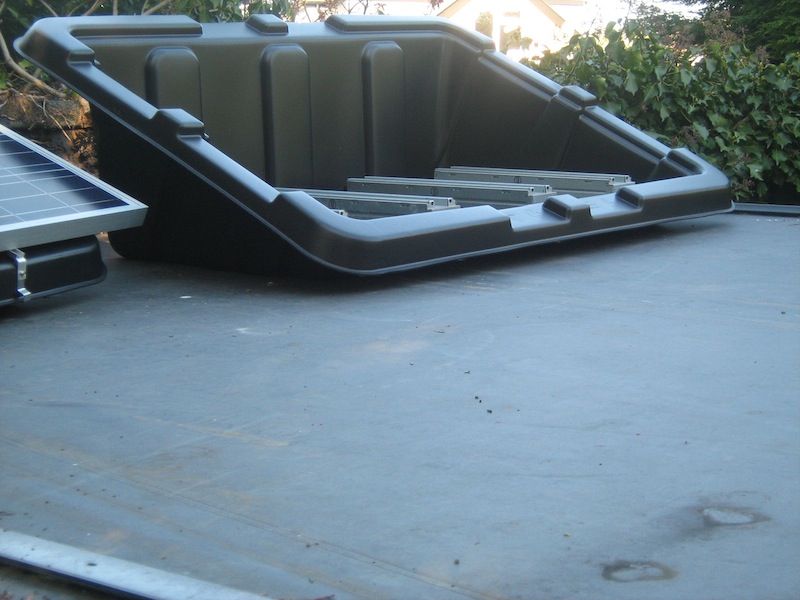

I have installed two panels so far. The are installed on Renusol flat roof mounting "bins". This is where the old battery packs came into good use. I have used them as ballast to weigh the Renusol bins down. The Renusol datasheet specifies 68Kg of ballast. Four of those battery packs is 72Kg and they are on a rubber roof which provides even more traction.

The first panel had been up for less than 24 hours and a bird had already crapped on it. The second one lasted just over a day before being crapped on. There is no sign of any mess on the rest of the roof (ever), just the panels. How do the birds know?

This work was done in the early evening when my site is unfortunately in shade.





I should have time to put the other two up this weekend.

kibi

#2

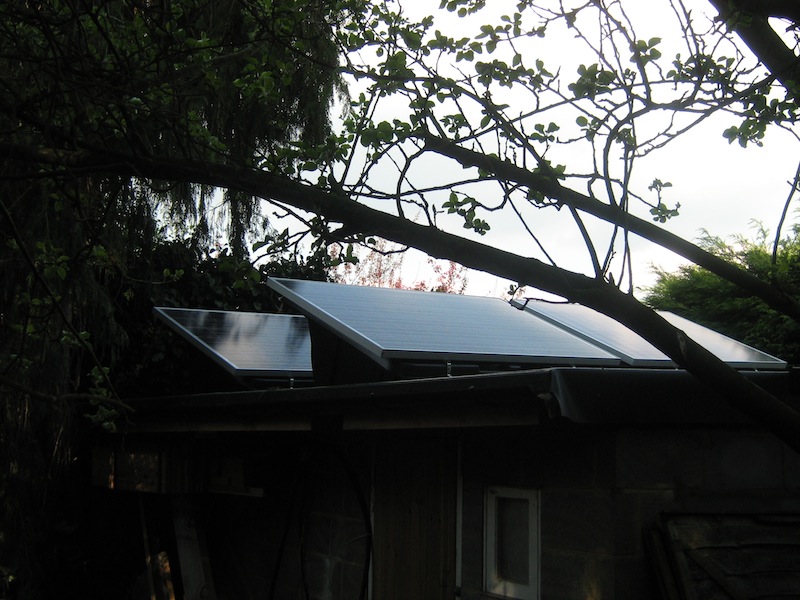

I have now completed the install. All four panels are up.

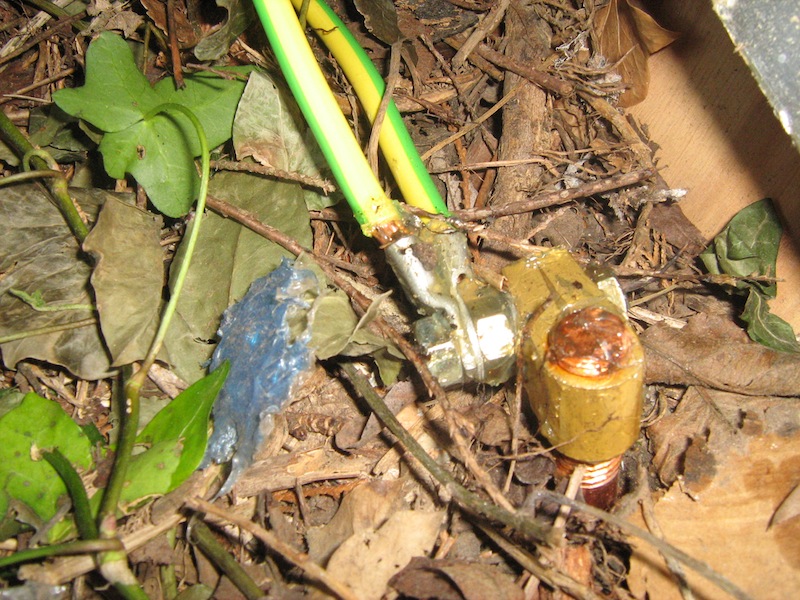

All of the panels are tied to a dedicated earth rod via one of these cables. The second cable provides a ground reference for the SPD and also ties the charge controller to ground.


mtdoc

Hi kibi-

Nice pics. I saw your same post on the EEV blog!

Innovative mounting idea.  I would worry about heat build up / lack of ventilation behind the panels though. Do you live in a warm climate?
Array 1: Sanyo HIT225 X 8 on Wattsun tracker. Array 2: Evergreen ES-E-225 X 12 on shed roof. Midnite e-panel with Outback GVFX3648, FNDC and Classic 150 X 2. 436 AH AGMs. Honda eu2000i X 2.

boB


It is kind of hard to see in these pictures but is your PV array in the shade ?

K7IQ 🌛  He/She/Me

kibi

#5
Quote from: mtdoc on May 06, 2013, 04:55:49 PM
Hi kibi-

Nice pics. I saw your same post on the EEV blog!

Innovative mounting idea.  I would worry about heat build up / lack of ventilation behind the panels though. Do you live in a warm climate?

OH cool, a fellow EEVBlogger! I don't know what happened to my first post of this thread, it appears to have disappeared.
I live in the UK, so mostly not very hot. The Renusol PV mounting system offers ample airflow under the panel to cool it. The panel has at least 25mm of clearance from the Renusol "bin" most of the way around except where the actual mounting points are.

Quote from: boB on May 06, 2013, 07:17:51 PM

It is kind of hard to see in these pictures but is your PV array in the shade ?



The site is a shady area in the afternoon time, and the pictures were taken late in the afternoon or evening time.
I do however get full sunlight on all of the panels until about 14:30 at the moment. At my current rate of consumption and generation, my battery floats at about 11:00 on a sunny day.
The power has peaked at about 750W IIRC and at 16:00 with the sun behind the trees, I can still get 150 - 200W.



Westbranch

you might want to try to catch the number of Amps you get late in the day, you might be quite surprised.
If you are at < 30% of max, it is amps you  are losing as Volts is the last to drop...
KID FW1811 560W >C&D 24V 900Ah AGM
CL150 29032 FW V.2126-NW2097-GP2133 175A E-Panel WBjr, 3Px4s 140W > 24V 900Ah AGM,
2 Cisco WRT54GL i/c DD-WRT Rtr, NetGr DS104Hub
Cotek ST1500 Inv  want a 24V  ROSIE Inverter
OmniCharge3024  Eu1/2/3000iGens
West Chilcotin 1680+W to come

kibi

Records show that I have had 25A at about 15:00. Usually, the battery amps have dropped in the afternoon because the charger is in the float stage.
Today is overcast with rain and I currently have 7A in bulk mode at 18:00.
